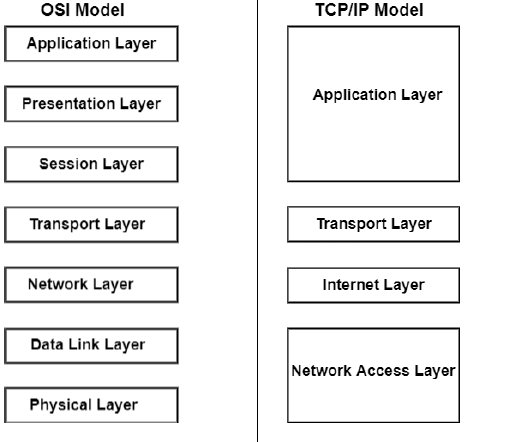

Difference between OSI and TCP/IP Model
What is OSI?
The International Organization for Standardization (ISO) developed the Open Systems Interconnection (OSI) model, which allows different communication systems to communicate via standard protocols. In layman's terms, the OSI establishes a standard for computer systems to communicate with one another.
What is TCP/IP Model?
Transmission Control Protocol/Internet Protocol (TCP/IP) model is a concise version of the OSI Model. The TCP/IP protocol suite was developed before the OSI model. But the layers in the TCP/IP protocol suite do not exactly match those in the OSI model.
Difference between OSI and TCP/IP Model
Following are the differences between OSI and TCP/IP Reference Model
| OSI | TCP/IP |
|---|---|
| OSI represents Open System Interconnection. | TCP/IP model represents the Transmission Control Protocol / Internet Protocol. |
| OSI is a generic, protocol independent standard. It is acting as an interaction gateway between the network and the final-user. | TCP/IP model depends on standard protocols about which the computer network has created. It is a connection protocol that assigns the network of hosts over the internet. |
| The OSI model was developed first, and then protocols were created to fit the network architectures needs. | The protocols were created first and then built the TCP/IP model. |
| It provides quality services. | It does not provide quality services. |
| The OSI model represents defines administration, interfaces and conventions. It describes clearly which layer provides services. | It does not mention the services, interfaces, and protocols. |
| The protocols of the OSI model are better unseen and can be returned with another appropriate protocol quickly. | The TCP/IP model protocols are not hidden, and we cannot fit a new protocol stack in it. |
| It is difficult as distinguished to TCP/IP. | It is simpler than OSI. |
| It provides both connection and connectionless oriented transmission in the network layer; however, only connection-oriented transmission in the transport layer. | It provides connectionless transmission in the network layer and supports connecting and connectionless-oriented transmission in the transport layer. |
| It uses a vertical approach. | It uses a horizontal approach. |
| The smallest size of the OSI header is 5 bytes. | The smallest size of the TCP/IP header is 20 bytes. |
| Protocols are unknown in the OSI model and are returned while the technology modifies. | In TCP/IP, returning protocol is not difficult. |
