Non-Linear Filters in Image processing

In image processing, Non-linear filters refer to filters whose output is not a weighted sum or linear combination of the input values. Unlike linear filters such as Gaussian filters, Sobel operators, non-linear filters process the pixel values in a local neighborhood in a non-linear manner based on operations like sorting, thresholding or other mathematical operations.

Non-linear filters are often used in situations where linear filters fail to preserve important features like edges or texture or when an image is corrupted with noise i.e., salt-and-pepper noise. They can provide better performance in noise removal, edge detection and preserving the structure of the image.

Key Features of Non-Linear Filters

Following are the features which make non-linear filters essential tools in image processing, especially for tasks like noise removal, edge preservation, shape manipulation and contrast enhancement.−

• Edge Preservation: Non-linear filters such as median filters and bilateral filters are known for their ability to preserve edges while removing noise. When compared to linear filters like Gaussian filter the non-linear filters do not blur edges. This makes them especially useful for applications like denoising where edge detail is crucial.
• Effective Noise Removal: Non-linear filters can efficiently remove different types of noise especially salt-and-pepper noise and Gaussian noise. For instance, the median filter is highly effective for removing salt-and-pepper noise without significantly affecting the underlying image details.
• Non-Linear Neighborhood Operations:: Non-linear filters operate by applying non-linear operations such as median, maximum, minimum within a neighborhood of each pixel rather than using a weighted sum of pixel values. This allows non-linear filters to perform tasks such as object boundary detection, feature enhancement and noise suppression in a more flexible manner compared to linear filters.
• Adaptability to Image Content: Non-linear filters such as the bilateral filter are used to adjust their behavior based on the content of the image like spatial distance and pixel intensity differences. This adaptability allows them to preserve important structures such as edges while still filtering out unwanted noise.
• Shape and Structure Preservation: Morphological operations such as erosion and dilation are used to modify the shapes and structures of objects in binary and grayscale images. These filters can be used for tasks such as object extraction, segmentation and shape-based noise removal, all while preserving the overall structure of objects.
• Non-Blurring Smoothing: Non-linear filters like the bilateral filter smooth the image while preserving sharp edges and important details.
• Enhancement of Specific Image Features: Filters like Top-Hat and Bottom-Hat are used to enhance specific image features such as bright or dark objects against a relatively uniform background.
• Handling of Complex Noise Patterns: Non-linear filters are robust to complex noise patterns including salt-and-pepper and Gaussian noise by making them ideal for real-world images with various types of disturbances.
• Flexible Structuring Elements: In morphological filtering the structuring element such as square, disk, rectangle are used to define how the filter interacts with the image.
• Local Operation Based on Pixel Neighborhood: Non-linear filters process pixels based on their local neighborhood and the operation depends on the values of neighboring pixels. This makes non-linear filters powerful in situations where the local context such as surrounding pixels is important such as edge detection, noise removal or feature extraction.
• Non-Monotonic Behavior: Non-linear filters especially morphological filters exhibit non-monotonic behavior which means they can produce results that differ significantly from linear filters for the same input.
• Customizable Filter Behavior: In many cases non-linear filters can be customized with different parameters such as filter size, thresholds and structuring elements. This flexibility allows users to fine-tune the filter to better suit their specific application whether it's denoising, edge detection or feature extraction.

Types of Non-Linear Filters

Following are the different types of Non-Linear filters used in Image processing in such a way to address specific tasks such as noise removal, edge preservation and shape extraction.

Example

This example shows how a non-linear filter such as the Median Filter can effectively clean up noise while maintaining important features in the image.

import numpy as np
import matplotlib.pyplot as plt
from scipy import ndimage
from skimage import data

# Load an example image (camera image from skimage.data)
image = data.camera()

# Add salt-and-pepper noise to the image
noise_image = np.copy(image)
num_salt = 0.02 * image.size
salt_coords = [np.random.randint(0, i-1, int(num_salt)) for i in image.shape]
noise_image[salt_coords[0], salt_coords[1]] = 255  # Salt (white) noise
num_pepper = 0.02 * image.size
pepper_coords = [np.random.randint(0, i-1, int(num_pepper)) for i in image.shape]
noise_image[pepper_coords[0], pepper_coords[1]] = 0  # Pepper (black) noise

# Apply Median filter using scipy.ndimage.median_filter
filtered_image = ndimage.median_filter(noise_image, size=3)

# Plot original and filtered images
fig, axes = plt.subplots(1, 2, figsize=(10, 5))
axes[0].imshow(noise_image, cmap='gray')
axes[0].set_title('Noisy Image')
axes[0].axis('off')

axes[1].imshow(filtered_image, cmap='gray')
axes[1].set_title('Median Filtered Image')
axes[1].axis('off')

plt.show()

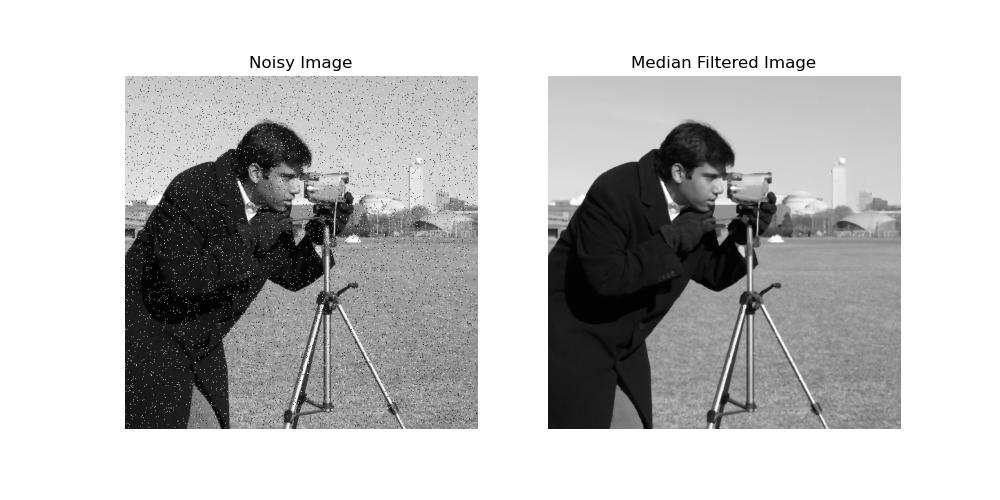

Here is the output of the Non linear filter −
